Product Details:
|
| Application: | Pharmacy Weighing Digital Scales | Measuring Range: | 0-100g/200g/300g |
|---|---|---|---|
| Scale Type: | 0.1mg Analytical Balance Scale | Power Supply: | 100v-240v |
| Keyword: | Electronic Analytical Balance | Display: | LCD(LED )Display |
| High Light: | LCD Precision Analytical Balance,weighing machine in chemistry lab,Large Backlight Precision Analytical Balance |
||

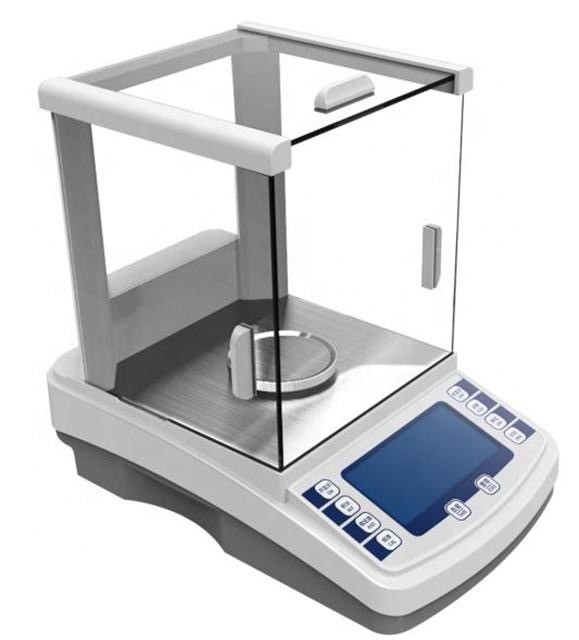

Large Backlight LCD Precision Analytical Balance With Automatic Fault Detection
The visual appearance of the product is blent into the simple concept, stylish and generous. Specially makes
the fine pouring cast-aliminium outer covering. So as to enhance the balance of the anti-static anti-jamming capability. Touch interface with four operational button. Sliding glass ind-screen provide big space, Insightful vision and operate easily.
Specification
1, large backlight LCD, so that the operator's vision is softer and clearer.
2. Humanized design, novel structure, five-sided transparent glass protective cover.
3, the use of a new generation of electromagnetic balance type weighing sensor, to ensure the high precision of the product.
4, With automatic fault detection, linear four-point calibration, overload protection and other applications.
5, the use of super large digital integrated circuit board, is the guarantee of product accuracy.
| Model | YK-AR1004 | YK-AR1204 | YK-AR2004 | YK-AR2204 | YK-AR3004 | YK-AR3204 |
| Range | 100g | 120g | 200g | 220g | 300g | 320g |
| Calibration weight | 100g | 100g | 200g | 200g | 200g | 200g |
| Graduation value | 0.0001g | |||||
| Linearity error | ±0.0003g | |||||
| power supply | 100v-240v | |||||
| Weighing plate size | 80mm | |||||
| Dimensions | 260×205×330mm | |||||
| Inner size of glass cylinder | φ77×80mm | |||||
| Basket size | φ40×110mm | |||||
| Operating temperature | 15-25℃ | |||||
| Package dimensions | 370×250×70mm | |||||
| Net weight/gross weight | 7.5kg/8.6kg | |||||
