Product Details:
|
| Display Type: | LCD | Material: | ABS Plastic OR Customzied |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Weight Function | Power Supply: | 220V/50HZ |
| Brand: | YKWT | Repeatability: | ±0.2mg |
| High Light: | Rear Type Electronic Weighing Balance,lab top loading weighing balance,Electronic Weighing Balance For Laboratory |
||

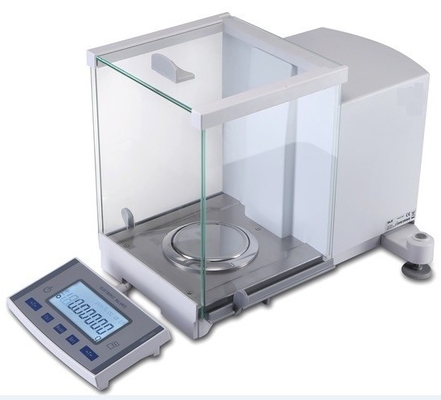

OEM ODM Digital Analytical Balance Rear Type Electromagnetic Force Sensor
Main features:
1. Rear type electromagnetic force sensor.
2. All transparent glass windshield, samples can be seen entirely and clearly.
3. Standard RS232 communication port, realize the communication between data and computer, printer or other device.
4. Detachable LCD display, to avoid the balance shaking and vibrating when users press the buttons.
5. Select the below hook weighing device.
6. Internal weights one key calibration.
7. Select thermal printer.
8. Functions:
Filling weighing function
Percentage weighing function
Count weighing function
Bottom weighing function
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
