Product Details:
|
| Display Type: | LCD | Power Supply: | 220V/50HZ |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Weight Function | Brand: | YKWT |
| Repeatability: | ±0.2mg | ||
| High Light: | Laboratory Top Loading Balance,top loading analytical balance,electronic top loading balance |
||

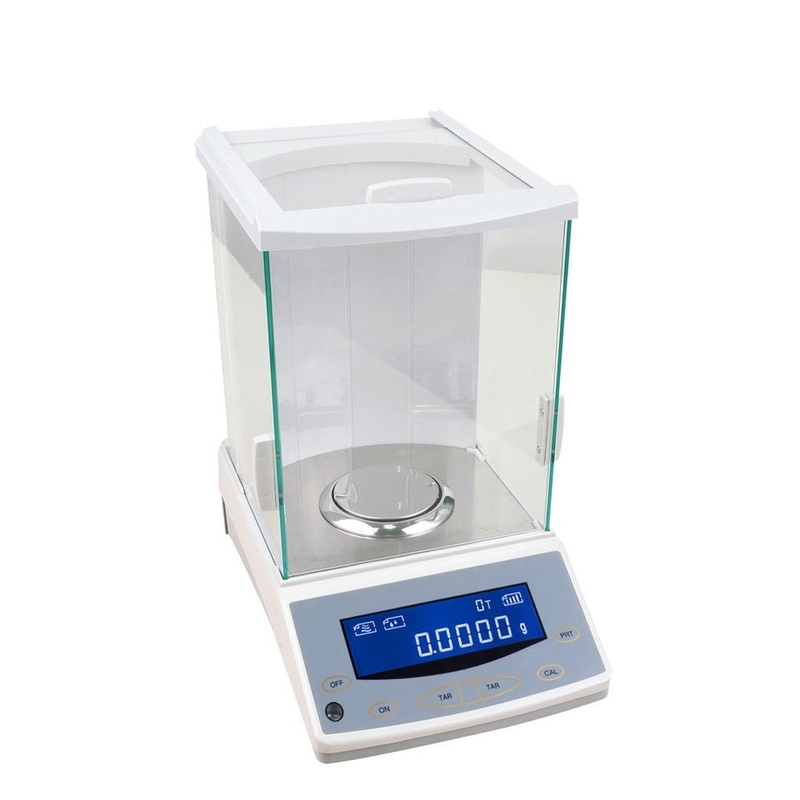

OEM Digital Analytical Balance Check Weighing , Parts Counting , Percentage Weighing
The visual appearance of the product is blent into the simple concept, stylish and generous.Specially makes the fine pouring cast- aluminium outer covering, so as to enhance the balance of the anti-static anti-jamming capability.The 5 inch touch panel with Humanized operation menu. Sliding glass windscreen provide big space, insightful vision and operate easily. We use high precision magnet sensor to keep the weighing more fast and stable.
Product Spec:
1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight.
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Substraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Stabilization Time, 2-3 seconds.
10. Check Weighing, Parts counting, percentage weighing
11. Universal power adaptorsupplied as standard
12. Certificated calibration weight supplied as standard.
13. Internal calibration or external calibration for your choice.
14. Ce approval.
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
|
Readability (mg) |
0.1mg/0.01mg |
|
Repeatability (mg) |
±0.1mg/±0.05mg |
|
Linearity Error (mg) |
±0.1mg/±0.05mg |
|
Operational Temperature Range (℃) |
10~30 |
|
Operational Moisture Range (RH) |
20-85% Relative (non-condensing) |
|
Response Time (Average value) (s) |
2.5/15 |
|
Pan Diameter (mm) |
Φ90 |
|
External Dimension (L*W*H mm) |
470*310*320 |
|
Preheat Time (minute) |
20-30 |
|
Baud Rate Options |
300,600,1200,2400,4800,9600 |
|
Display |
Detachable LCD display |
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
