Product Details:
|
| Display Type: | LCD | Feature: | Stable Performance |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Auto Zero Tracking | Brand: | YKWT |
| Repeatability: | ±0.2mg | ||
| High Light: | Digital Weighing Balance For Laboratory,electronic top pan balance ISO9001,electronic balance for laboratory |
||

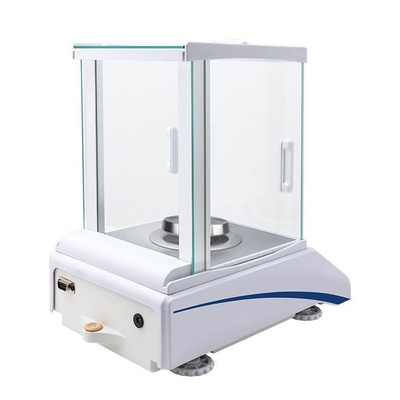

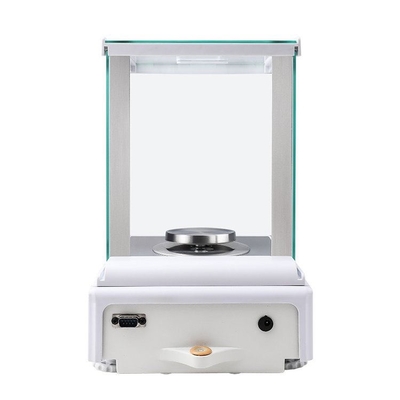

OEM Digital Analytical Balance LCD backlighting display , clear reading Post-electromagnetic force transducer
The balance adopts internationally recognized high sensitivity, high stability and high speed integrated electromagnetic force sensor technology, leading the balance of similar products in the industry in terms of cost performance. High precision, fast response speed, low maintenance, large range, high precision, super stability, multi-function and other characteristics, innovative appearance, win higher product pricing initiative, outstanding machine texture, rigorous process, exquisite and beautiful. The products are widely used in scientific research, education, medical treatment, metallurgy, agriculture and other industries.
YKWT series analytical balance's visual appearance of the product is blent into the simple concept,stylish and generous. Specially makes the fine pouring cast-aliminium outer covering. So as to enhance the balance of the anti-static anti-jamming capability.Touch interface with four operational button. Sliding glass indscreen provide big space, Insightful vision and operate easily.
Features
◆ Post-electromagnetic force transducer
◆Φ90mm stainless steel pan.
◆Full Automatic internal Calibration.
◆Double Range weighing
◆LCD backlighting display, clear reading
◆Multiple weighing units conversion and data output, g, ct, oz etc..
◆Measuring way: counting, percentage, etc.
◆Standard RS232 output interface.
◆Density measurement.
◆Optional under hook device
|
Maximum weighing
|
310
|
g
|
|
|
Minimum reading
|
0.001
|
g
|
|
|
Repeatability
|
±0.002
|
g
|
|
|
Linear error
|
±0.003
|
g
|
|
|
Stable time
|
≤3
|
s
|
|
|
Weighing pan size
|
Φ90
|
mm
|
|
|
Operating temperature
|
17.0~25.5
|
℃
|
|
|
Calibration method
|
6.5
|
kg
|
|
|
Net weight
|
External calibration
|
||
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
