Product Details:
|
| Features: | Internal Weights One Key Calibration. | Dimensions: | 360×205×330mm |
|---|---|---|---|
| Operating Temperature: | 15-25℃ | Package: | Safe Packing |
| Sensor: | Rear Type Electromagnetic Force Sensor | Optional Accessories: | Printer |
| Certification: | ISO, CE | Keyword: | Laboratory Analytical Balance |

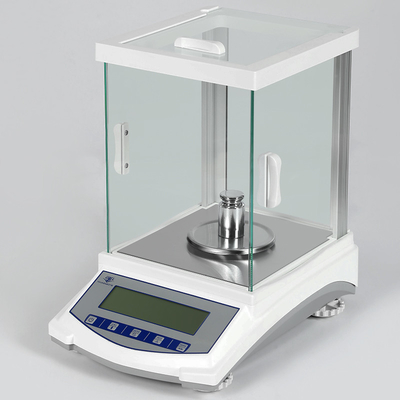

Standard RS232 Communication Port Tall Glass Cover Electronic Analytical Balances For Laboratory
Analytical balance is the most important instrument for accurate weighing in experiments, and it can be divided into mechanical and electronic. Mechanical analytical balances can be subdivided into ordinary analytical balances, air damping balances, semi-automatic photoelectric balances, fully automatic photoelectric balances and single-tray balances. These balances all use the principle of leverage, but differ in structure and method of use. The mechanical balance can meet the accuracy requirements of general quantitative analysis, with a sensitivity of 0.1 mg. The biggest advantage of this type of balance is its intuitive structure, but the balance parts are complicated, and the operation is demanding and time-consuming
What are the performance characteristics of electronic analytical balances?
1. The built-in RS232 two-way communication interface can realize the connection between the balance and the computer and micro-printer. Weighing results can also be transferred to other open applications such as PC;
2. The direct reading of density, volume, concentration and purity eliminates cumbersome calculations;
3. High-precision humidity sensor is used to reduce the influence of ambient humidity to a very low level;
4. Adopt high-sensitivity temperature sensor to reduce the sensitivity of temperature change to a very low level;
5. Adopt gold-plated ceramic variable capacitance sensor;
6. Large-screen LCD display is adopted, the screen is clear and bright, and the layout is reasonable, which is convenient for users to read the measurement results;
7. It can realize the measurement of solid density and solid volume; the measurement of liquid density and liquid concentration;
8. The whole machine adopts a streamlined design, high strength, strong anti-leakage, anti-static, and anti-corrosion capabilities, and is suitable for various occasions;
9. Fully transparent glass windshield, 100% of the sample is visible when weighing, and it can also be completely disassembled and cleaned to achieve quick cleaning;
| Range | Graduation value | Calibration weight | Weighing plate size | Linearity error |
| 100g | 0.0001g | 100g | φ80mm | ±0.0003g |
| 120g | 0.0001g | 100g | φ80mm | ±0.0003g |
| 200g | 0.0001g | 200g | φ80mm | ±0.0003g |
| 220g | 0.0001g | 200g | φ80mm | ±0.0003g |
| 300g | 0.0001g | 200g | φ80mm | ±0.0003g |
| 320g | 0.0001g | 200g | φ80mm | ±0.0003g |
| 100g | 0.001g | 100g | φ80mm | ±0.003g |
| 200g | 0.001g | 200g | φ80mm | ±0.003g |
| 300g | 0.001g | 200g | φ80mm | ±0.003g |
| 500g | 0.001g | 200g | φ80mm | ±0.003g |
| 1000g | 0.001g | 500g | φ110mm | ±0.003g |
| Preheat time | 30min | |||
| Stable Schedule | ≤8S/5S | |||
| Dimensions | 360×205×330mm | |||
| Operating Temperature | 15-25℃ | |||
| Power Supply | 100v-240v | |||
| Calibration method | Fully automatic on-campus / off-campus | |||
| Optional accessories | printer | |||
Overview
The balance adopts internationally recognized high sensitivity, high stability and high speed integrated electromagnetic force sensor technology, leading the balance of similar products in the industry in terms of cost performance. High precision, fast response speed, low maintenance, large range, high precision, super stability, multi-function and other characteristics, innovative appearance, win higher product pricing initiative, outstanding machine texture, rigorous process, exquisite and beautiful. The products are widely used in scientific research, education, medical treatment, metallurgy, agriculture and other industries.
