Product Details:
|
| Display Type: | LCD | Customized Support: | OEM, OBM |
|---|---|---|---|
| Product Size: | 295×310×100mm | Material: | ABS + Stainless Steel |
| Function: | Weight Function | Units: | G,ct,oz,bounch,ounce Thirteen Units |
| High Light: | Four Level Shockproof Density Balance,RS232 Interface Density Balance Digital Scale,ODM Density Balance Digital Scale |
||

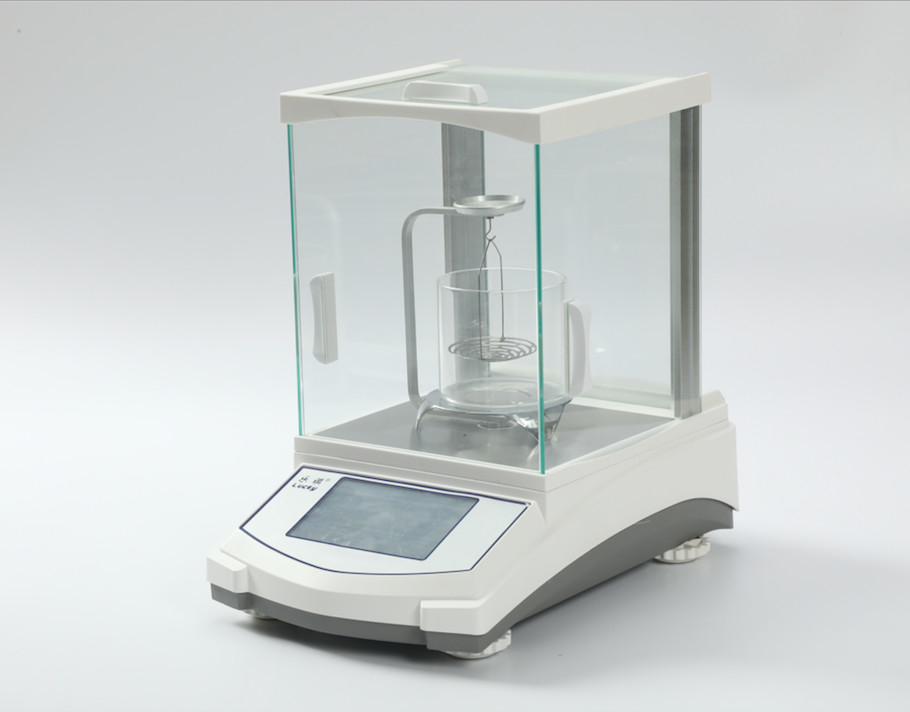

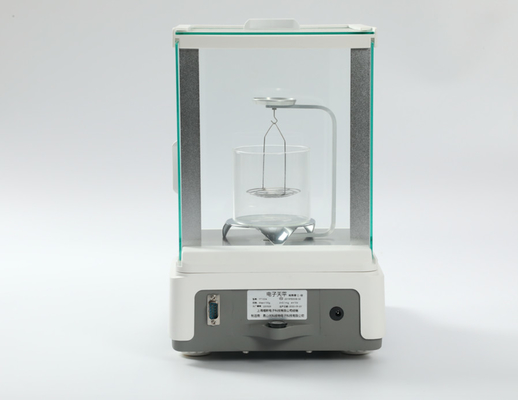

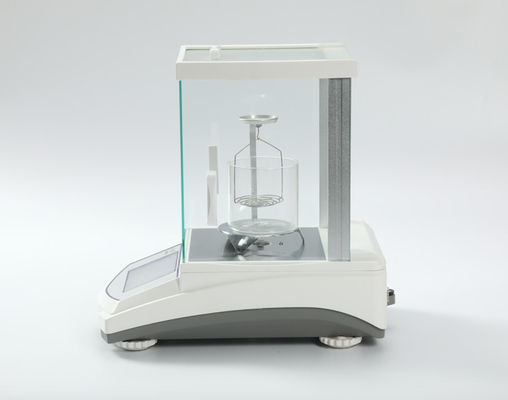

Easy To Use Density Balance Widely Used In Electronics Industry
The density balance adopts a high-precision weighing system and strict determination procedures, so that the density is directly displayed on the display screen. Thereby greatly reducing the tediousness and human error of manual conversion. The operation of the density balance is simple, direct, clear and clear. Meet the requirements of density determination in various industrial applications and scientific research departments. Density balance is widely used in electronics industry, rubber industry, plastic industry, wire and cable manufacturing industry, shoe industry, sporting goods industry, food industry, cosmetics industry, paper industry, machinery processing industry, powder metallurgy industry, tire manufacturing industry, automobile industry , research institutes, chemical research institutions and other departments.
Electronic Analytical Balance Detail:
1. Modular electromagnetic force sensor
2. Weighing range indicat, white light LCD display
3. High sensitivity light touch buttons
4. Under hook recessed
5. The glass door lock to protecting transportation
6. RS232 interface module, USB interface module, built-in clock
7. Independent “Tare” and “zero” button, two-way communication
8. Four level shockproof
9. Dynamic temperature compensation
10. Weighing speed adjustable, showing way adjustable
11. Zero in range ability
12. Automatic trouble diagnosis, Over-loading protection
13. Unit conversion (g / oz / ct / kg / lb)
Unit
g, mg, ct, oz, ozl, dwt, GN, lb, N, dr,tlT, tls, tlH,T(Tola), T/A/R(tola/anna/rati), /A/R(tola/Mna/rati), ms(Mesghal), bat,
/lb(Partsper pound),kg,20units selectable
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000C | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000C | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000C | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10D | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15D | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20D | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30D | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35D | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000C | 6kg | 0.2 | ±0.6g | 225*230mm | ≤3S |
| ACS-15D | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20D | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30D | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30D | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15D | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30D | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40D | 40kg | 1g | ±3g | 225*230mm | ≤3S |
1. AC and DC
2. Zero, Tare, Simple counting, Unit switch function
3. Stainless steel Housing
4. LCD or LED display
5. Auto zero after on, zero tracking
6. 6V/4AH Built-in rechargeable free maintainance battery
7. Working Temperature:-10 ℃~ + 40 ℃ Relative humidity: ≤85%RH
rules of use
1. When using the balance, you should first pay attention to whether the balance is placed horizontally, if not, adjust the level first. Sign the registration booklet and register the time of use; if any balance failure is found, please report it to the instructor immediately, and it is strictly forbidden to repair it by yourself.
2. Keep the balance dry, and keep away from medicine vapor and direct sunlight.
3. The object to be weighed must be cooled or returned to room temperature before it can be weighed.
4. The weight of the object to be weighed must not exceed the maximum load.
5. Do not vibrate the balance, and do not press the table with your hands when weighing.
6. It is strictly forbidden to touch all parts of the balance.
7. When putting in or taking out the weighing object, be careful and gentle and turn off the switch.
8. Weighing paper should be used when weighing reagents, but for reagents that are erodeable, hygroscopic, volatile or sublimable, weighing (measuring) bottles must be used, and it is strictly forbidden to place the reagents directly on the weighing pan.
9. The inside and outside of the balance must be kept clean at all times; if the test medicine accidentally drops on the plate or in the balance, immediately wipe it off with a brush.
10. After the medicine is weighed, the medicine bottle cap should be covered immediately to prevent it from falling over accidentally.
11. It is strictly forbidden to play and make noise when the balance weighs the medicine.
12. Clean up the balance immediately after use.
