Product Details:
|
| Customized Support: | OEM, ODM, OBM, Software Reengineering | Display: | LCD(LED )Display |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Material: | ABS + Stainless Steel |
| Power Supply: | 100V-240V | OEM Or ODM: | Welcome |
| High Light: | ODM Electronic Weighing Scales,OEM Electronic Weighing Scales,100V High Precision Weighing Scales |
||

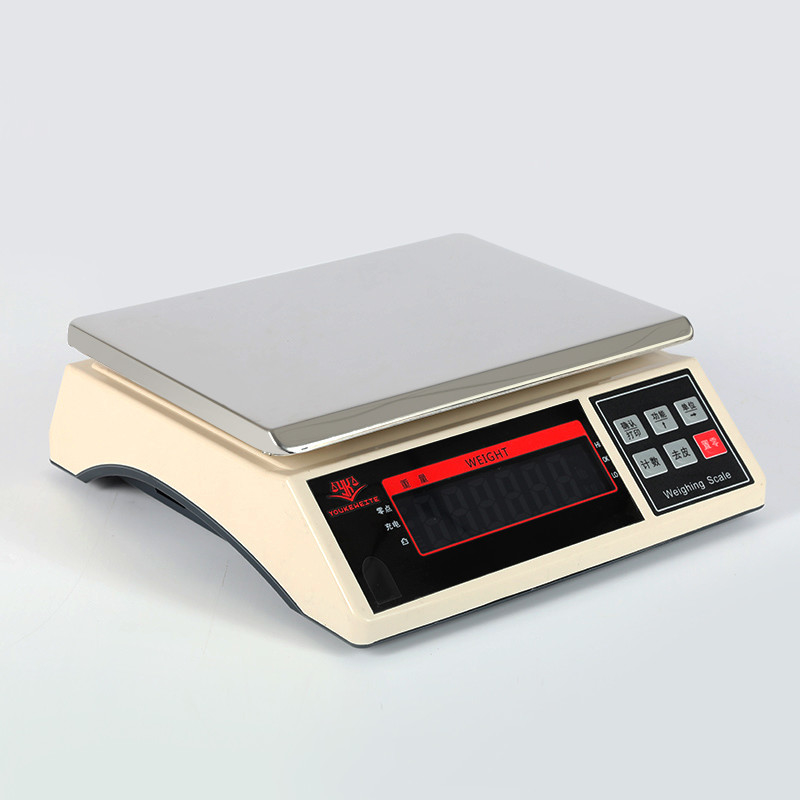

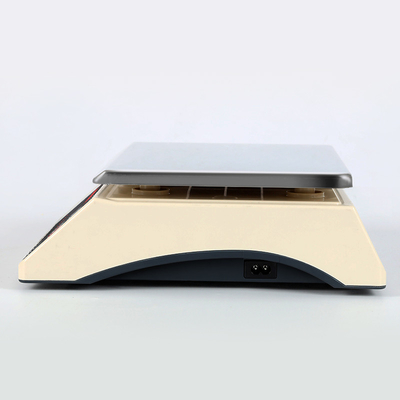

Large Range And High Precision Electronic Weighing Scales Super Bright LED Display
Main functions of electronic table scale
It has automatic zero tracking, zero setting, tare, weight, unit price, amount calculation, 8 kinds of unit price setting amount accumulation, total, overload, over-value alarm, error message prompt, power supply AC and DC dual-purpose, empty machine automatically enters low Power consumption and energy-saving state, digital voltmeter self-test, and automatic shutdown function when the voltage is insufficient.
The electronic table scale adopts high-precision weighing sensor and eight-bit single-chip microprocessor. It has the function of rapid weighing and pricing. It is easy to operate and stable in performance. Transaction measurement. Electronic scales are widely used in commercial transactions and industrial measurement.
Principle:
When the object is placed on the weighing pan, the pressure is applied to the sensor, which deforms, so that the impedance changes, and at the same time, the excitation voltage is changed to output a changed analog signal. The signal is amplified by the amplifying circuit and output to the analog-to-digital converter. It is converted into a digital signal that is easy to process and output to the CPU operation control. The CPU outputs this result to the display according to keyboard commands and programs. until this result is displayed.
Specifications
*Display: High-definition LED
*Rated load:3kg-40kg
*Accuracy:0.05g-1g
*Power: AC/DC(220V), rechargeable battery(optional)
*Sensor: Load cell
*Unit: kg/lb/g
*Stabilization time: ≤3s
*Working temperature:0-40°C
*Material: High-strength ABS new materials +Large size 304 stainless steel thick double-layer weighing pan
*Interface: RS232(optional)
*Printer(optional)
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
1. What is the acceptable MOQ?
For the electronic balance ,our acceptable MOQ is 1pc. (sample support for quality evaluation)
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
Trade Assurance ,T/T, Western union,MoneyGram.
