Product Details:
|
| Display Type: | LCD | Customized Support: | OEM, OBM |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Weight Function | Power Supply: | 220V/50HZ |
| Brand: | YKWT | Display: | Touch Screen |
| Highlight: | OBM Digital Analytical Balance,Aluminum Alloy Die Cast Base electronic balance,Digital Analytical Balance SS Platter |
||

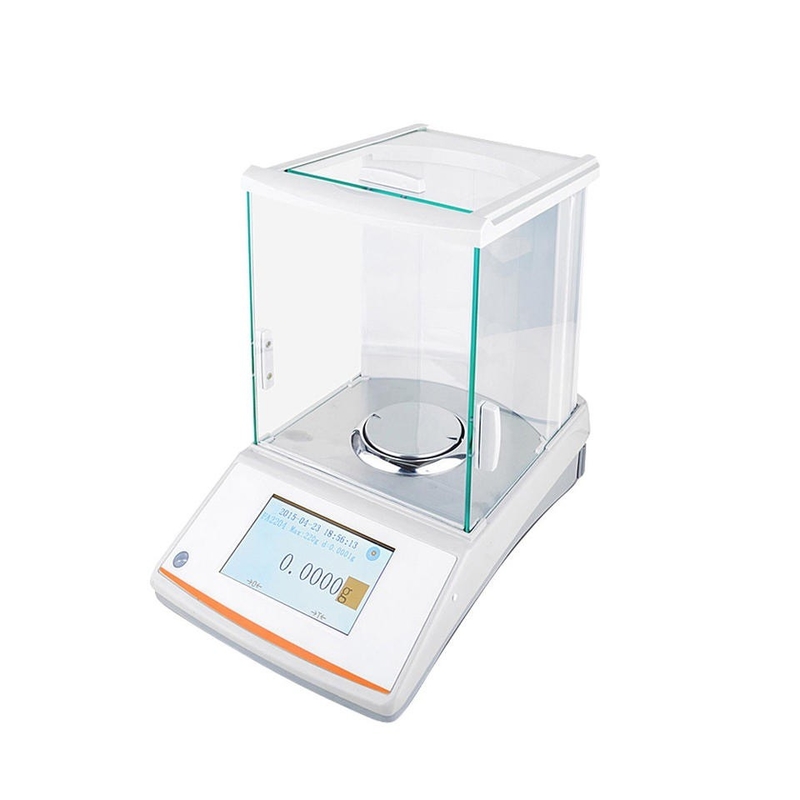

Over Load Protection Digital Analytical Balance Aluminum Alloy Die Cast Base And Ss Platter
Product Spec:
1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright 5 inch color LCD display with backlight.
4. RS232C Interface/USB for choice.
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Substraction.
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing.
10. Universal power adaptorsupplied as standard.
11. Certificated calibration weight supplied as standard.
12. External calibration.
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
