Product Details:
|
| Display Type: | LCD | Customized Support: | OEM, OBM |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Weight Function | Power Supply: | 220V/50HZ |
| Brand: | YKWT | Repeatability: | ±0.2mg |
| Highlight: | Count Weighing Digital Analytical Balance,Windshield standard balance,Digital Analytical Balance Clear Glass |
||

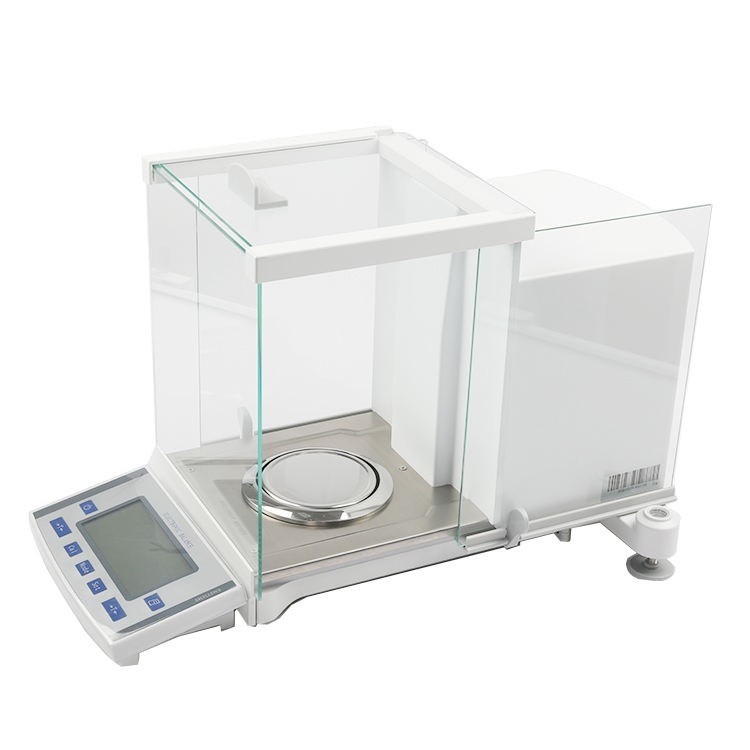

Count Weighing Percentage Weighing Digital Analytical Balance Clear Glass Windshield As Standard
Feature:
YKWT series Electronic Analytical Balance adopts the internationally recognized rear type electromagnetic force sensor technology of high sensitivity and high stability, has high quality and reasonable price. With creative fashion appearance, excellent texture, strict and exquisite craftsmanship, this series balance wins good reputation from customers.
This series is widely used in the industries of scientific research, education, medical treatment, metallurgy, agriculture etc.
1. Rear type electromagnetic force sensor.

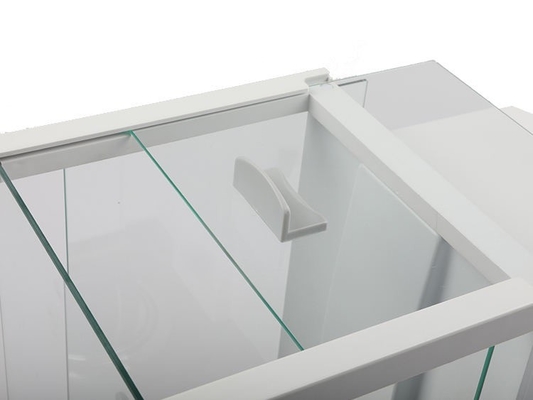

2. All transparent glass windshield, samples can be seen entirely and clearly.
3. Standard RS232 communication port, realize the communication between data and computer, printer or other device.
4. Detachable LCD display, to avoid the balance shaking and vibrating when users press the buttons.
5. the below hook weighing device(optional)
6. Internal weights one key calibration.
7. Thermal printer(optional).
8. Functions:Filling weighing, Percentage weighing,Count weighing,Bottom weighing.
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
