Product Details:
|
| Weighing Units: | G, Kg, Lb, Oz, Ct, GN | Customized Support: | OEM, ODM |
|---|---|---|---|
| Platform Scale Frame: | Stainless Steel | Platform Scale Pan Size: | Optional Pan Size |
| Display: | Digital LED Display | Packing: | 1pc/ctn |
| High Light: | Electronic Digital Bench Scale,500kg Platform Weighing Scales,Platform Scale 300kg |
||

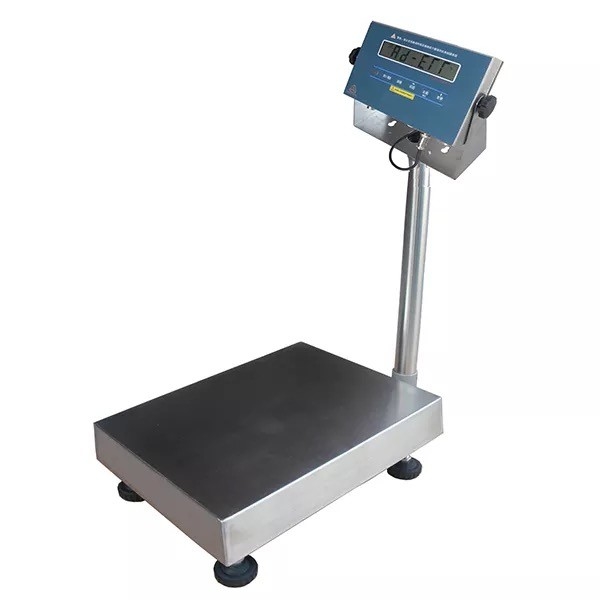

Electronic Digital Bench Scale / Platform Scale 300kg 500kg Platform Weighing Scales Analog
Specification
1)Rectangular pipe mild steel welding structure, with Zemic or Keli or Guangce load cells, without indicator
2)Stainless steel cover
3)With bracket (mild steel) and column (Φ38mm stainless-steel tube) for the indicator
4)With all bolts and screws for each unit
Advantage of Bench Scale
1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted : We have our own technologic team ,so can produce any your design .
3.Good Service : We treat clients as our best friends.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
※ High precision A/D conversion, Readability is 1/30000;
※Zero position tracking range and zero setting (boot/manual) range can be set respectively;
※ Digital filtering speed, amplitude and the stable time can be set;
※ Weighing counting function;
※ Backlight models is optional;
※ Rechargeable；With under voltage alarm and protection;
※ LED is With 4 V/ 4 Ah maintenance－free rechargeable battery.
※ LCD is with 6V/4Ah maintenance－free rechargeable battery
※ With RS232 connection (optional)
※ A/D conversion mode:Σ-Δ conversion mode
※ A/D conversion rate: 10t/S
※ Maximum A/D conversion:24bit
※ input signal range:－10mV～15mV
※ input sensitivity:≥1μV/e
※ Load cell excitation power:DC3.3V.
| model | range | division value | linear | According to size | Stable time |
| TCS-60HC | 60kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-100HC | 100kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-150HC | 150kg | 2g | ±6g | 40*50cm | ≤3S |
| TCS-300HC | 300kg | 5g | ±15g | 45*60cm | ≤3S |
| TCS-60C | 60kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-100C | 100kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-150C | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300C | 300kg | 10g | ±30g | 45*60cm | ≤3S |
| TCS-100L | 100kg | 5g | ±15g | 30*40cm | ≤3S |
| TCS-150L | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300L | 300kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-200C | 200kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-200C | 200kg | 10g | ±30g | 40*50cm | ≤3S |
| TCS-200L | 200kg | 20g | ±60g | 40*50cm | ≤3S |
| TCS-100LC | 100kg | 10g | ±30g | 30*40cm | ≤3S |
| TCS-150LC | 150kg | 20g | ±60g | 30*40cm | ≤3S |
| TCS-300LC | 300kg | 50g | ±150g | 45*60cm | ≤3S |
| TCS-500C | 500kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-500LC | 500kg | 50g | ±150g | 60*80cm | ≤3S |
