Product Details:
|
| Weighing Units: | G, Kg, Lb, Oz, Ct, GN | Customized Support: | OEM, ODM |
|---|---|---|---|
| Platform Scale Frame: | Stainless Steel | Platform Scale Pan Size: | Optional Pan Size |
| Display: | Digital LED Display | Communication Interface: | RS232/RS485 |
| High Light: | Weighing Bench Scale 30kg,100kg digital bench scale,Weighing Bench Scale 50kg |
||

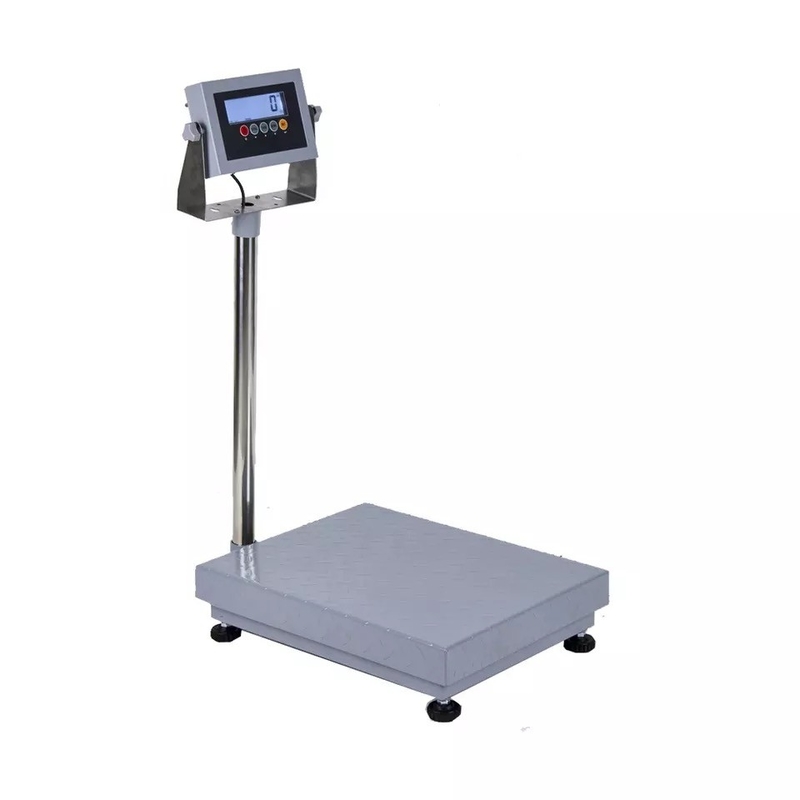

30kg 50kg 100kg 500kg 1000kg LCD Display Digital Automatic Weighing Bench Scale
Description:
. Stainless steel rectangular pipe welding structure.
.Stainless-steel 304 platform (cover).
. With OIML R60 approved load cells.
. With bracket (stainless steel) and column(Φ38mm stainless-steel tube) for the indicator.
. Surface finishing: sandblasting or polish (mirror surface)
. Stainless steel rubber protection cover optional
Applications:
1. Weighing
2. Net weight/tare
3. Weight accumulation
※ High precision A/D conversion, Readability is 1/30000;
※Zero position tracking range and zero setting (boot/manual) range can be set respectively;
※ Digital filtering speed, amplitude and the stable time can be set;
※ Weighing counting function;
※ Backlight models is optional;
※ Rechargeable；With under voltage alarm and protection;
※ LED is With 4 V/ 4 Ah maintenance－free rechargeable battery.
※ LCD is with 6V/4Ah maintenance－free rechargeable battery
※ With RS232 connection (optional)
※ A/D conversion mode:Σ-Δ conversion mode
※ A/D conversion rate: 10t/S
※ Maximum A/D conversion:24bit
※ input signal range:－10mV～15mV
※ input sensitivity:≥1μV/e
※ Load cell excitation power:DC3.3V.
| model | range | division value | linear | According to size | Stable time |
| TCS-60HC | 60kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-100HC | 100kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-150HC | 150kg | 2g | ±6g | 40*50cm | ≤3S |
| TCS-300HC | 300kg | 5g | ±15g | 45*60cm | ≤3S |
| TCS-60C | 60kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-100C | 100kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-150C | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300C | 300kg | 10g | ±30g | 45*60cm | ≤3S |
| TCS-100L | 100kg | 5g | ±15g | 30*40cm | ≤3S |
| TCS-150L | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300L | 300kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-200C | 200kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-200C | 200kg | 10g | ±30g | 40*50cm | ≤3S |
| TCS-200L | 200kg | 20g | ±60g | 40*50cm | ≤3S |
| TCS-100LC | 100kg | 10g | ±30g | 30*40cm | ≤3S |
| TCS-150LC | 150kg | 20g | ±60g | 30*40cm | ≤3S |
| TCS-300LC | 300kg | 50g | ±150g | 45*60cm | ≤3S |
| TCS-500C | 500kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-500LC | 500kg | 50g | ±150g | 60*80cm | ≤3S |
