Product Details:
|
| Scale Type: | Electronic Balance | Unit: | Kg,oz,ct,ozt,dwt,t,g |
|---|---|---|---|
| Weighing Mode: | Basic Weighing, Counting Weighing, Percent Weighing | Function: | Weight Function |
| Certification: | CE,ROHS | Pan SIze: | Dia 90mm /110mm |
| High Light: | 0.1mg Digital Analytical Balance,110mm digital balance scale,High Accuracy Digital Analytical Balance |
||

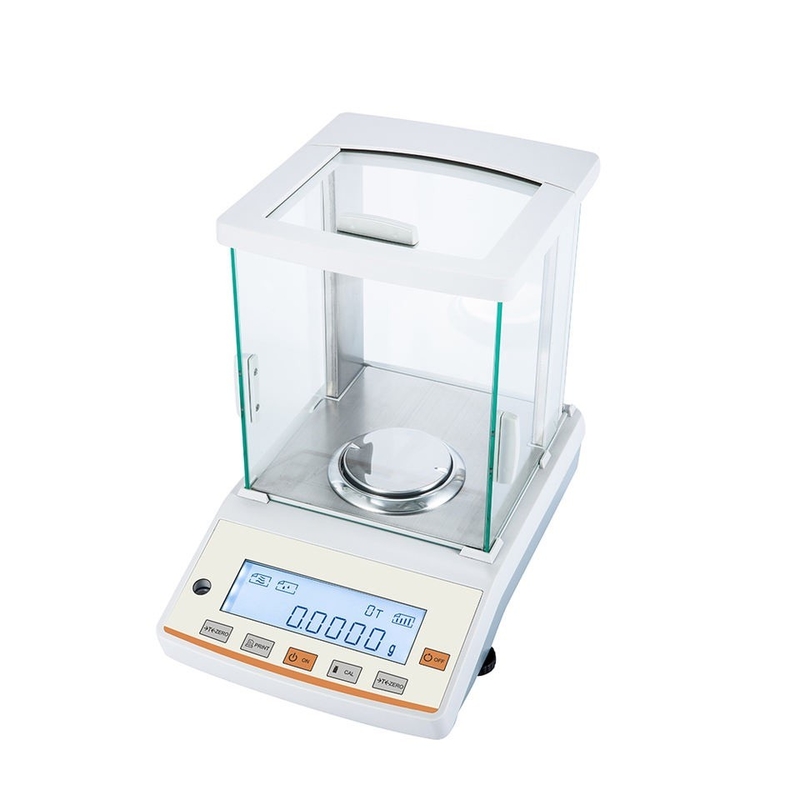

High Accuracy: 0.1mg Digital Analytical Balance Aluminum Alloy Die Cast Base And SS Platter
Feature:
● Humanized desogn,novel design and five-side full-transparent windshield.A new-generation electromagnetic balance weughting sensor guarantees high precision.Application programs such as sutpmatic fault detection,four-point linear calibration and over-load protection.
● The adoption of ultra-large digital intergrated printed circuit board guarantees high product precision.Th adoption of twin-cam mechanism realizes advantafeous funcation of automatic internal calibration which makes product faster and more stable.
● Application programs such as "warming","calibrating"and screen saver.
● Ultra-large backlight LCD display brings clearer and more comfortable visual senso to operator.
Application:
Laboratory, Industrial, Education, Retail, Food, Jewelry and specialty market.
|
Maximum weighing
|
310
|
g
|
|
|
Minimum reading
|
0.001
|
g
|
|
|
Repeatability
|
±0.002
|
g
|
|
|
Linear error
|
±0.003
|
g
|
|
|
Stable time
|
≤3
|
s
|
|
|
Weighing pan size
|
Φ90
|
mm
|
|
|
Operating temperature
|
17.0~25.5
|
℃
|
|
|
Calibration method
|
6.5
|
kg
|
|
|
Net weight
|
External calibration
|
||
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
Weighing application mode:
1.Percent weighing function
2.Density weighing direct reading function
3. Animal weighing function
4. Set object weighing and counting function
5. Cost settlement function
6. Check weight function
