Product Details:
|
| Scale Type: | Digital Electronic Mini Weighing Scales | Unit: | Kg,oz,ct,ozt,dwt,t,g |
|---|---|---|---|
| Weighing Mode: | Basic Weighing, Counting Weighing, Percent Weighing | Function: | Weight Function |
| Certification: | CE,ROHS | Pan SIze: | Dia 90mm /110mm |
| High Light: | Digital Analytical High Accuracy Balance,LCD digital scales for jewellery,Large Interface High Accuracy Balance |
||

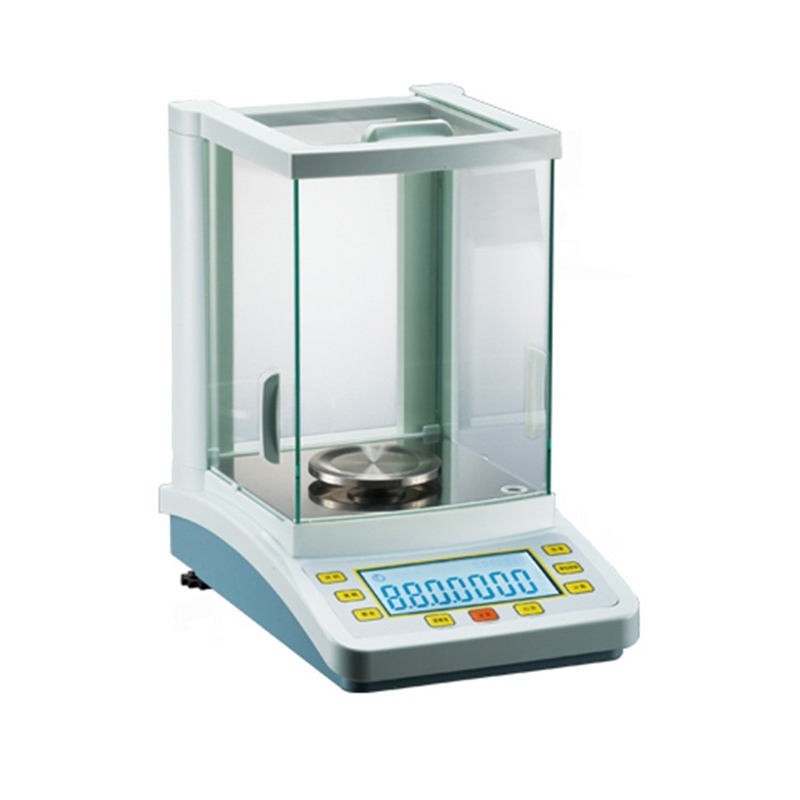

High Accuracy: 0.1mg Digital Analytical Balance LCD Large Interface With Backlight Display
Features
Adopts underneath type electromagnetic force sensor
All transparent glass draft shield,samples can be seen entirely and clearly
Standard RS232 communication port -realize the communication with computer, printer or other devices
Detachable LCD display, protect the balance from shock and vibration when user operates the balance
High accuracy: 0.1mg
Basic weighing, counting weighing, percent weighing and other weighing mode
Optional functions/accessories: below hook weighing device, thermal printer, density kit
Ideal for applications including scientific research,education,medical treatment, metallurgy, agriculture or any other use
Application:
Laboratory, Industrial, Education, Retail, Food, Jewelry and specialty market.
|
Maximum weighing
|
310
|
g
|
|
|
Minimum reading
|
0.001
|
g
|
|
|
Repeatability
|
±0.002
|
g
|
|
|
Linear error
|
±0.003
|
g
|
|
|
Stable time
|
≤3
|
s
|
|
|
Weighing pan size
|
Φ90
|
mm
|
|
|
Operating temperature
|
17.0~25.5
|
℃
|
|
|
Calibration method
|
6.5
|
kg
|
|
|
Net weight
|
External calibration
|
||
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
Weighing application mode:
1.Percent weighing function
2.Density weighing direct reading function
3. Animal weighing function
4. Set object weighing and counting function
5. Cost settlement function
6. Check weight function
7.Wool / Net / Skin weighing function
8.Peak hold function
9. Cumulative function
