LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale

I'm Online Chat Now

LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale

LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale
LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale

Large Image :  LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale

Product Details:
Place of Origin: Dongguan China
Brand Name: YKWT
Certification: CE ISO9001
Model Number: Electronic Counting Scale
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Export package
Delivery Time: Negotiate
Payment Terms: T/T
Supply Ability: 10000 per month

LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale

Description
Power Supply: AC 220 V, DC 6 V Display: LCD(LED )Display
Special Features: Counting , Weighing , Tare , Coin Counting, Alarm Material: ABS + Stainless Steel
Unit Of Measurement: G,kg,lb(switchable) Maximum Range: 3kg~30kg
High Light:

LCD Display digital counting scale

,

Industrial counting weighing scale

,

Digital Counting Scale Electronic

LCD Display Digital Counting Scale Electronic Industrial Counting Weighing Scale


YKWT is a kind of electronic scale with counting function, large liquid crystal display and obviously easy to read. Used in parts factories, handicraft factories and other fields. This kind of electronic scale can accurately measure the number of parts, which greatly improves the efficiency of the factory warehousing staff and saves a lot of money for the enterprise. It has several functions such as sampling, single setting, accumulation, and maximum number setting. Optional: print function and LP50 print multi-group format selection function; can be connected to a large screen display
1. Sampling setting and counting function: When you do not know the single weight of the part, use this method to sample:
First place the part to be sampled on the weighing pan and the weight window will display the weight. Automatic calculation of weight
2. The upper and lower limit alarm functions of weight and quantity. When the set limit is exceeded, the screen backlight is red and the buzzer alarms, and the audio-visual comprehensive prompt. Optional three-color warning light
3. 9vDC power adapter, DC 6V/4h (built-in rechargeable battery).
4. Start automatic zero setting, zero point automatic tracking.
5. Operating temperature range: 0-40 ° C.
6. Relative humidity ≤ 85% Rh



Capacity(kg) 3 6 15 30
Division(g) 0.2 0.5/1g 1g/5g 1g/5g/10g
Display screen Weight / Unit price /Total Price (5 / 5 / 6 digits)
Weighing units kg/lb,deafult unit is kg
Weighing pan(mm) 320x 230mm(about 500g weight,two kinds tray for customer choice)
Power supply AC 100~240V / rechargeable battery (4 V/ 4 AH,4V/6AH)
Body color Can be customized
Main board Big good long life mainboard with circuit protection
Display board Good class PCB board
key pad Good class PCB board
Transformer Copper transformer built inside
Load cell 130mm long good load cell
Body material New ABS material
Battery life 240hrs in continuous use two month without backlight
Tare range 100% of full scale capacity

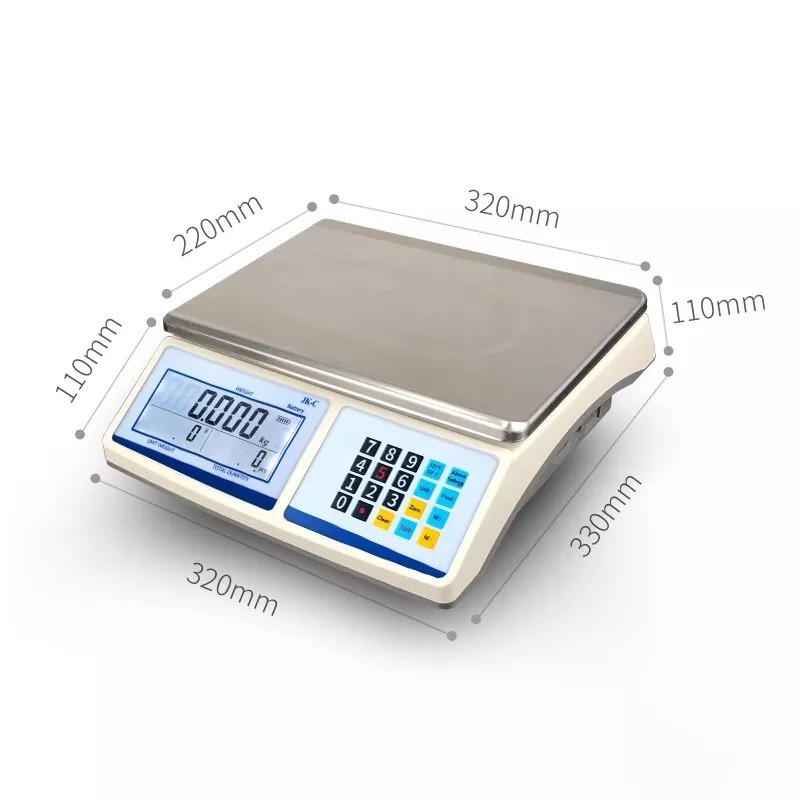

Dimensions 330X320X110mm


Function:

1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication



model range Graduation value Linearity error Weighing plate size stable schedule
ACS-3000W 3kg 0.05g ±0.15g 225*230mm ≤3S
ACS-3000W 3kg 0.1g ±0.3g 225*230mm ≤3S
ACS-6000W 6kg 0.1g ±0.3g 225*230mm ≤3S
ACS-10WD 10kg 0.1g ±0.3g 225*230mm ≤3S
ACS-15WD 15kg 0.1g ±0.3g 225*230mm ≤3S
ACS-20WD 20kg 0.1g ±0.3g 225*230mm ≤3S
ACS-30WD 30kg 0.1g ±0.3g 225*230mm ≤3S
ACS-35WD 35kg 0.1g ±0.3g 225*230mm ≤3S
ACS-6000W 6kg 0.2g ±0.6g 225*230mm ≤3S
ACS-15WD 15kg 0.2g ±0.6g 225*230mm ≤3S
ACS-20WD 20kg 0.2g ±0.6g 225*230mm ≤3S
ACS-30WD 30kg 0.2g ±0.6g 225*230mm ≤3S
ACS-30WD 30kg 0.5g ±1.5g 225*230mm ≤3S
ACS-15WD 15kg 0.5g ±1.5g 225*230mm ≤3S
ACS-30WD 30kg 1g ±3g 225*230mm ≤3S
ACS-40WD 40kg 1g ±3g 225*230mm ≤3S



FAQ

1,Q:Can I print our logo on the product?
A:Yes, all color and pattern available, other OEM / ODM requests also be welcomed
2,Q:Can i get a sample?
A:Of course, but you may need to pay sample charge which will be returned after any order signed. Some stock sample will be free for
you! Just need you afford the sample shipping cost
