Product Details:
|
| Power Supply: | 100V-240V | Display: | LCD(LED )Display |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Material: | ABS + Stainless Steel |
| Unit Of Measurement: | G,kg,lb(switchable) | ||
| High Light: | 30KG Electronic Balance Scale,30KG high precision electronic balance,Electronic Balance Scale RS232 |
||

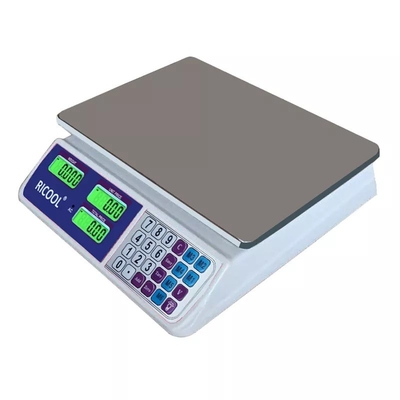

30KG Weighing Electronic Balance Scale Counting Scale RS232 Communication Serial Port
Features:
1)Capacity/Division: 30kg/5g 15kg/2g 6kg/1g 3kg/1g
2)Power:220V AC/DC,50HZ or 110V AC/DC,60HZ
3)Material: ABS plastic +stainess iron pan
4)Tray size:33*24cm
5)Display:LED black word or LCD with backlight
6)water-splash proof english panel
7)Low power and charging status indication
| Capacity(kg) | 3 | 6 | 15 | 30 |
| Division(g) | 0.2 | 0.5/1g | 1g/5g | 1g/5g/10g |
| Display screen | Weight / Unit price /Total Price (5 / 5 / 6 digits) | |||
| Weighing units | kg/lb,deafult unit is kg | |||
| Weighing pan(mm) | 320x 230mm(about 500g weight,two kinds tray for customer choice) | |||
| Power supply | AC 100~240V / rechargeable battery (4 V/ 4 AH,4V/6AH) | |||
| Body color | Can be customized | |||
| Main board | Big good long life mainboard with circuit protection | |||
| Display board | Good class PCB board | |||
| key pad | Good class PCB board | |||
| Transformer | Copper transformer built inside | |||
| Load cell | 130mm long good load cell | |||
| Body material | New ABS material | |||
| Battery life | 240hrs in continuous use two month without backlight | |||
| Tare range | 100% of full scale capacity | |||
| Dimensions | 330X320X110mm | |||
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
