Product Details:
|
| Power Supply: | 100V-240V | Display: | LCD(LED )Display |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Material: | ABS + Stainless Steel |
| Unit Of Measurement: | G,kg,lb(switchable) | ||
| High Light: | 30KG Weighing Electronic Balance,counter weight scale 100V,Weighing Electronic Balance 240V |
||

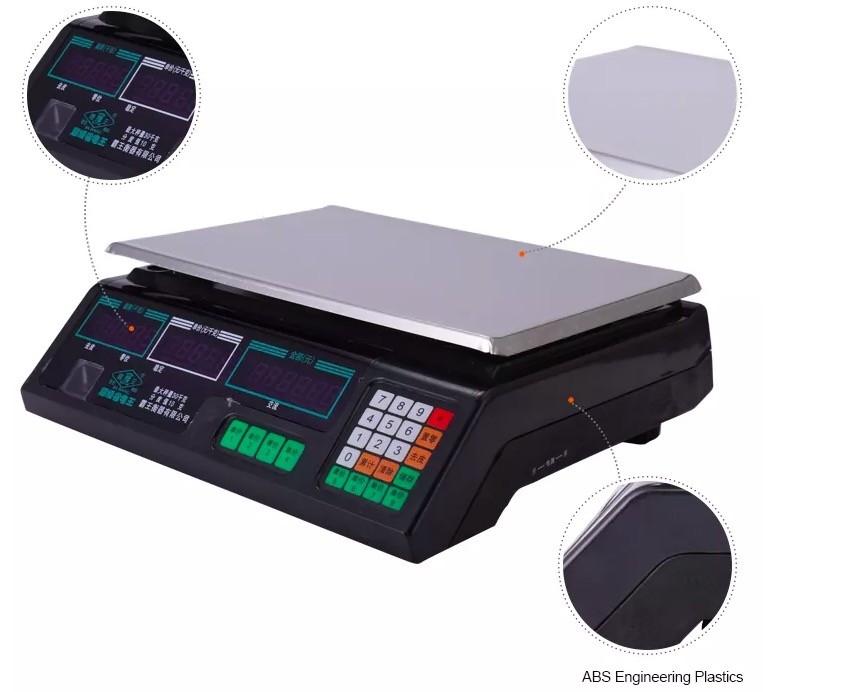

30KG Weighing Electronic Balance Scale Counting Scale LED High-Definition Large-Screen Digital Display
Features:
1. Sampling setting and counting function: When you do not know the single weight of the part, use this method to sample:
First place the part to be sampled on the weighing pan and the weight window will display the weight. Automatic calculation of weight
2. The upper and lower limit alarm functions of weight and quantity. When the set limit is exceeded, the screen backlight is red and the buzzer alarms, and the audio-visual comprehensive prompt. Optional three-color warning light
3. 9vDC power adapter, DC 6V/4h (built-in rechargeable battery).
4. Start automatic zero setting, zero point automatic tracking.
5. Operating temperature range: 0-40 ° C.
6. Relative humidity ≤ 85% Rh
| Capacity(kg) | 3 | 6 | 15 | 30 |
| Division(g) | 0.2 | 0.5/1g | 1g/5g | 1g/5g/10g |
| Display screen | Weight / Unit price /Total Price (5 / 5 / 6 digits) | |||
| Weighing units | kg/lb,deafult unit is kg | |||
| Weighing pan(mm) | 320x 230mm(about 500g weight,two kinds tray for customer choice) | |||
| Power supply | AC 100~240V / rechargeable battery (4 V/ 4 AH,4V/6AH) | |||
| Body color | Can be customized | |||
| Main board | Big good long life mainboard with circuit protection | |||
| Display board | Good class PCB board | |||
| key pad | Good class PCB board | |||
| Transformer | Copper transformer built inside | |||
| Load cell | 130mm long good load cell | |||
| Body material | New ABS material | |||
| Battery life | 240hrs in continuous use two month without backlight | |||
| Tare range | 100% of full scale capacity | |||
| Dimensions | 330X320X110mm | |||
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
