Product Details:
|
| Function: | Weighing And Counting | Material: | ABS + Stainless Steel |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Unit Of Measurement: | G,kg,lb(switchable) |
| Range: | 3kg/0.1g, 6kg/0.2g, 15kg/0.5g, 30kg/1g | ||
| High Light: | High Precision Electronic Counting Scale,30kg 1g portable electronic scale,Electronic Counting Scale RS232 |
||

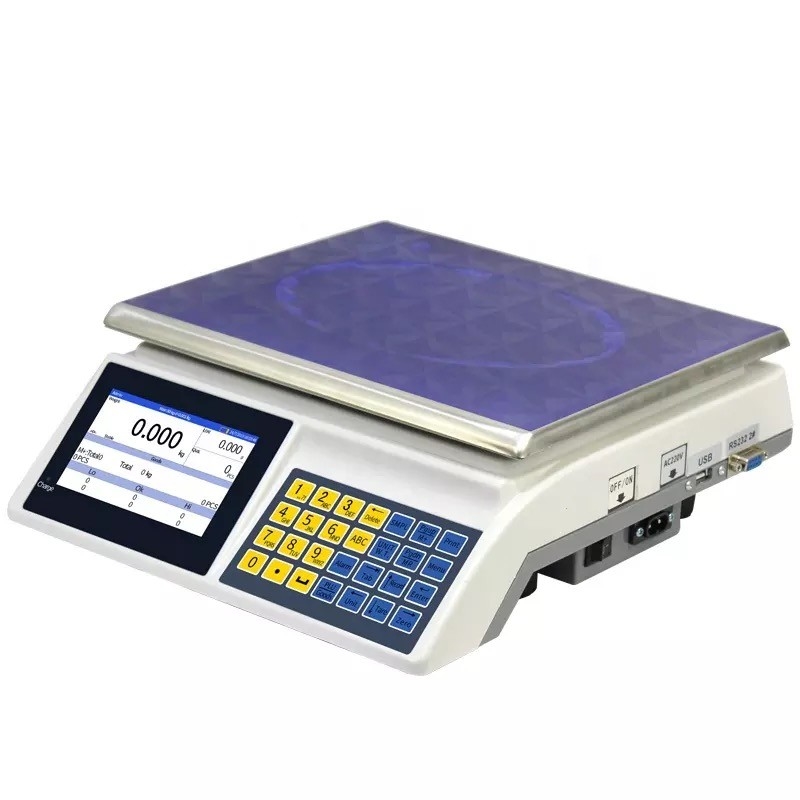

Large Range And High Precision Electronic Counting Scale RS232 Communication Serial Port
Product Features
1. Capacity: 30 kg, 15kg, 6kg
2. Indivision: 1g,0.5g,0.2g
3. Function: ZERO, TARE, WEIGHING,COUNTING
4. LCD/LED display
5. AC/DC power supply
6. Rechargeable battery
7. Power cord can be made according to customer country's request
Main advantages
LCD Display
High accuracy for special use
Very energy saving
Low profile, compact size - uses less counter space
Heavy duty construction with overload and underload stops - will withstand harsh industrial operation
Keys can be changed into touch keys with prompt response
|
Product name
|
Electronic scale
|
|
Material
|
ABS + Stainless Steel
|
|
Display Screen
|
LED/LCD
|
|
Color
|
White
|
|
Capacity
|
3kg&6kg&15kg&30kg
|
|
Carton Size
|
685*385*350mm
|
|
Packing
|
5pcs
|
|
Gross Weight
|
21kg
|
|
Power
|
AC/DC
|
|
Stabilization
|
3 second
|
|
Calibration
|
External calibration
|
|
Tare Range
|
100% of full scale capacity
|
|
Power supply
|
DC: Rechargeable battery(long life and protect environment)
AC:100V/240V±10%,60Hz/50Hz |
|
Operating Environment
|
Temperature:-25-50 for storage,-10-40 for work Humidity:<70%RH for storage, <90%RH for work
|
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
1.Can you provide the sample to check?
Yes,we can,the smaple time is 1-5 days.
2.Can you put our logo on the products?
Yes,we can do OEM and ODM orders.
3.What payment term can you accept?
Normally it's 30% in advance,70% upon receipt of B/L copy.
After good cooperation,we can discuss better payment term.
Main goal
Persistence in quality
Responsibility for cost
Challenge against perfection
