Product Details:
|
| Display Type: | LCD | Power Supply: | AC/DC |
|---|---|---|---|
| Material: | ABS Plastic | Function: | Built-in Alarm Light |
| Feature: | Adjustable Angle | Customized Support: | OEM, ODM, OBM, Software Reengineering |
| High Light: | CE Weighing Platform Scale,304 Stainless Steel Weighing Platform Scale,OBM Weighing Bench Scale |
||

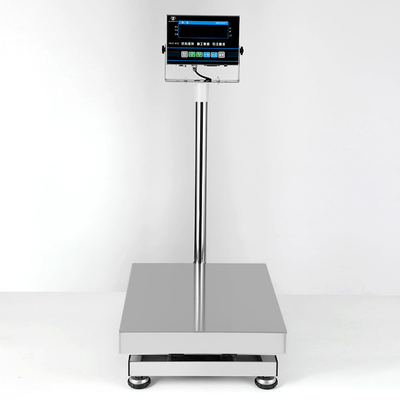

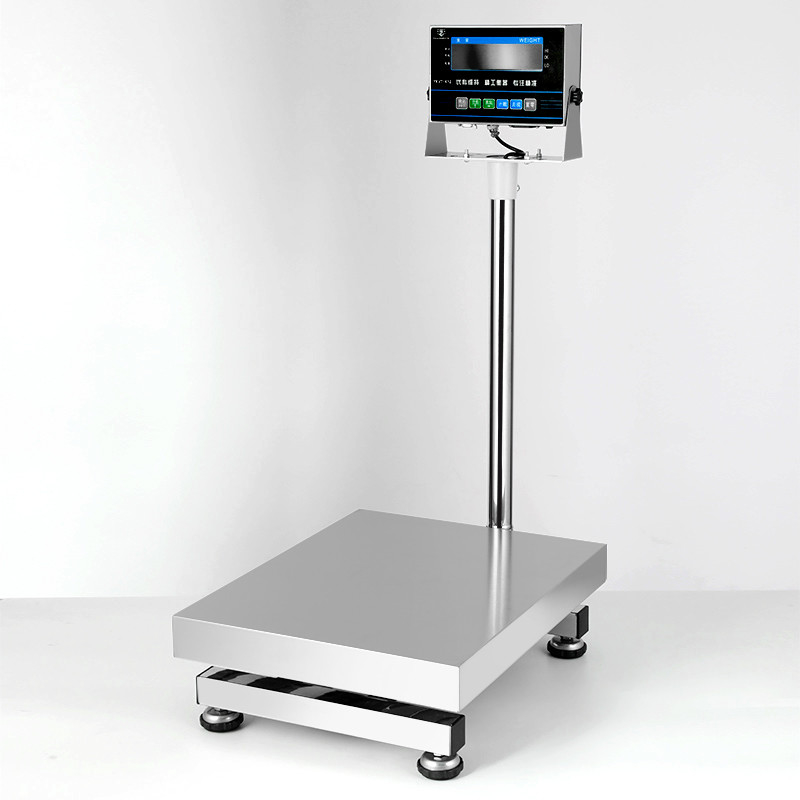

304 Stainless Steel Weighing Platform Scale Easy To Operate Large Range And High Precision Sensitive Response
Introduction to electronic platform scales Detailed introduction to parameters and characteristics
1. The scale frame of the electronic platform scale is made of stainless steel square tube welded by a special fixture, which is highly waterproof and anti-corrosion. Waterproof grade IP67.
2. The scale frame uses a four-horizontal and four-vertical structure to avoid damage to the scale body caused by the deviation of the weighing items during use and the accuracy of the measurement results. It is firm and reliable
3. The weighing pan is made of high-quality 304 stainless steel, which has strong corrosion resistance after solid solution treatment. 304 steel has super hardness and smooth appearance, easy to clean. Use 6-point limit to protect the table.
4. High-precision sensors, stainless steel sensors can be selected for special industries requiring waterproof and anti-corrosion sensors. Sensor plus protective cover, double-layer protection. At the same time, the display can be selected according to the needs of measurement applications.
5. It is widely used in the food industry, plastic industry, aquatic industry, chemical industry, etc. to measure items within the range of 30KG-500KG that have moisture-proof and anti-corrosion requirements, and is placed on the ground for use.
Features:
1. Simple operation, convenient maintenance, beautiful appearance
2. You can choose stainless steel weighing pan, carbon steel weighing pan or all stainless steel weighing pan
3. AC and DC dual-purpose
4. Overload error message prompt
5. This product has power automatic test and selection function
6. When the battery is insufficient during use, the battery will be replaced if the battery is insufficient
7. Super bright LED display
8. Two working modes can be set to save or not to save the zero point
9. With weight tare function
10. Selection of division number, division value, output display, decimal point, etc.
11. RS232 output
12. Four set point outputs, external barcode scales can be connected as required
13. AC and DC, random charging, battery undervoltage protection (battery optional)
14. With strong digital filtering function, it can be used in various occasions
| model | range | Graduation value | Linear | Weighing plate size | stable schedule |
| TCS-60HC | 60kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-100HC | 100kg | 1g | ±3g | 30*40cm | ≤3S |
| TCS-150HC | 150kg | 2g | ±6g | 40*50cm | ≤3S |
| TCS-300HC | 300kg | 5g | ±15g | 45*60cm | ≤3S |
| TCS-60C | 60kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-100C | 100kg | 2g | ±6g | 30*40cm | ≤3S |
| TCS-150C | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300C | 300kg | 10g | ±30g | 45*60cm | ≤3S |
| TCS-100L | 100kg | 5g | ±15g | 30*40cm | ≤3S |
| TCS-150L | 150kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-300L | 300kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-200C | 200kg | 5g | ±15g | 40*50cm | ≤3S |
| TCS-200C | 200kg | 10g | ±30g | 40*50cm | ≤3S |
| TCS-200L | 200kg | 20g | ±60g | 40*50cm | ≤3S |
| TCS-100LC | 100kg | 10g | ±30g | 30*40cm | ≤3S |
| TCS-150LC | 150kg | 20g | ±60g | 30*40cm | ≤3S |
| TCS-300LC | 300kg | 50g | ±150g | 45*60cm | ≤3S |
| TCS-500C | 500kg | 20g | ±60g | 45*60cm | ≤3S |
| TCS-500LC | 500kg | 50g | ±150g | 60*80cm | ≤3S |
