Product Details:
|
| Stable Schedule: | ≤3S | Graduation Value: | 0.001g |
|---|---|---|---|
| Linearity Error: | ±0.003g | Preheat Time: | 15min |
| Product Size: | 360×205×330mm | Weighing Plate Size: | Φ90mm |
| High Light: | digital electronic analytical balance,90mm plate lcd analytical balance,Cast Aluminum Base Electronic Analytical Balance |
||

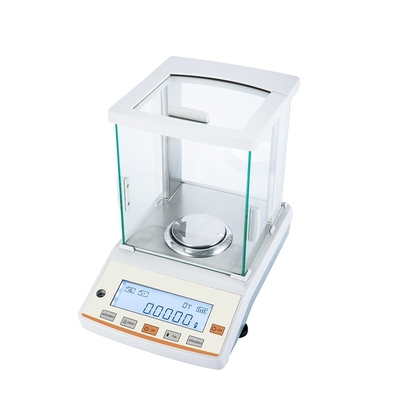

Cast Aluminum Base Electronic Analytical Balance Resistance Strain Type High-Precision Sensor
Unit conversion (g /ct /lb/oz/t/dwt/ozt)
Resistance strain type high-precision sensor
LCD liquid crystal display
Cast aluminum base
ABS shell/large space glass windshield (removable)
Stainless steel weighing pan/stainless steel table
Full weighing, tare/count
Overload alarm/fault alarm/
Level indicator/leveling feet
RS232 interface supports printer and computer connection (optional)
| model | YK-CN1003 | YK-CN2003 | YK-CN3003 | YK-CN5003 |
| range | 100 | 200 | 300 | 500 |
| Calibration weight | 50g | 100g | 100g | 200g |
| Graduation value | 0.001g | |||
| Linearity error | ±0.003g | |||
| Preheat time | 15min | |||
| stable schedule | ≤3S | |||
| Weighing plate size | Φ90mm | |||
| Product Size | 360×205×330mm | |||
| Operating temperature | 5-40℃ | |||
| power supply | 220v | |||
| Calibration method | External calibration | |||
| Package dimensions | 385×275×425mm | |||
| Net weight/gross weight | 4kg/5kg | |||
Personalized design, novel structure, attractive appearance and excellent performance
New generation electromagnetic weighing cell makes the product precision have reliable guarantee.
Have many kinds of applications, such as full automatic malfunction detection, automatic calibration and overload protection
Have the functions of counting,percent and unit conversion, and so on, so that the operation is convenient and reliable.
