Product Details:
|
| Display Type: | LCD | Display Type:: | LCD Display With Backlight |
|---|---|---|---|
| Unit: | Kg,oz,ct,ozt,dwt,t,g | Attachments: | English Manual, Adapter, Calibration Weight |
| Function: | Weight Function | Certification: | CE,ROHS |
| Pan SIze: | Dia 90mm /110mm | Brand: | YKWT |
| High Light: | LCD Display Digital Analytical Balance,calibration weight digital laboratory balance,Backlight Digital Analytical Balance |
||

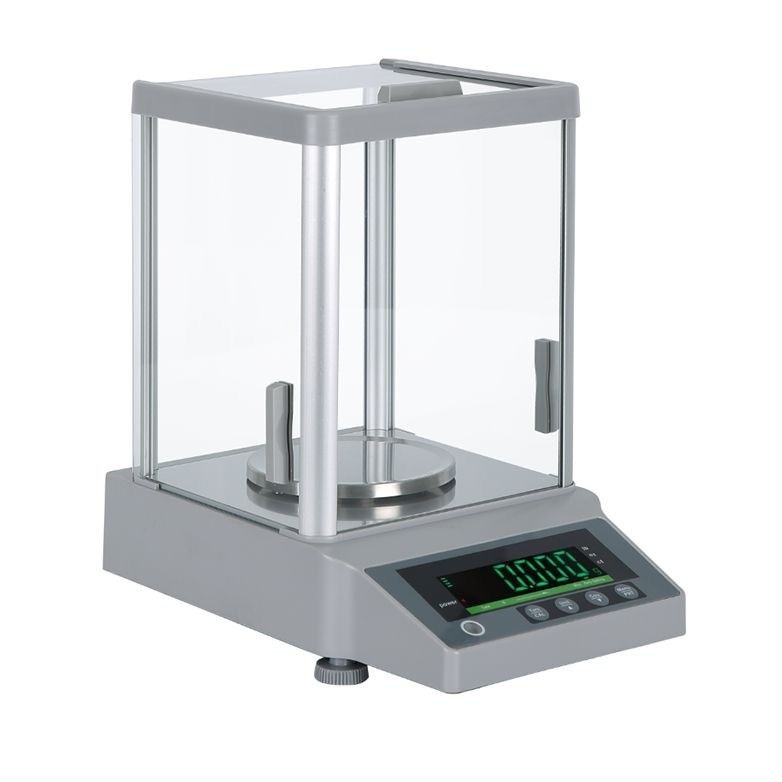

Over Load Protection Digital Analytical Balance Super Bright LCD Display With Backlight
Main performance characteristics:
1.Single precision mass sensor
2.Automatic intelligent internal calibration function
3.Six levels of shockproof filter adjustable function
4.LCD large interface with backlight display
5.Adjustable weighing stabilization time
6.With 20 kinds of shield able units such as grams, carats, ounces, etc.
7. Equipped with RS232 / USB communication port to connect peripheral devices
8. Power on / off automatically locks the current mode
9. Built-in date and time adjustable function
10. Lower hook weighing device
11.Built-in temperature display function
Weighing application mode:
1.Percent weighing function
2.Density weighing direct reading function
3. Animal weighing function
4. Set object weighing and counting function
5. Cost settlement function
6. Check weight function
7.Wool / Net / Skin weighing function
8.Peak hold function
9. Cumulative function
Application:
Laboratory, Industrial, Education, Retail, Food, Jewelry and specialty market.
|
Maximum weighing
|
310
|
g
|
|
|
Minimum reading
|
0.001
|
g
|
|
|
Repeatability
|
±0.002
|
g
|
|
|
Linear error
|
±0.003
|
g
|
|
|
Stable time
|
≤3
|
s
|
|
|
Weighing pan size
|
Φ90
|
mm
|
|
|
Operating temperature
|
17.0~25.5
|
℃
|
|
|
Calibration method
|
6.5
|
kg
|
|
|
Net weight
|
External calibration
|
||
|
Product Details:
|
Description:
|
||
|
Outline Dimension
(L×W×H mm) |
10.5"×6.3"×10.8"
(350×210×360 mm)
|
1. Pan: 80 mm , stainless iron 304
2. Display: Bigger LCD (white back-light) (L×W) 4.5"×1.6" (115×40 mm) 3. Interface: Rs232C 4. Power: AC/DC (Rechargeable Battery) 5. Units: g, kg, oz, ct, lb, GN 6. More functions: Counting, Percentage, Full Range Tare, Over-Load Protection, Zero Tracking, Automatic Turn-Off, Under Weighing, Low Power Indicator 7. Attachments: english manual, adapter, under hook, rechargeable battery 8. Speed: 2 s 9. Value stable time: 3 s |
|
|
Load cell Dimension
|
5.2"×0.9"×1" (131×23×26 mm)
|
||
|
Material Breakdown
|
ABS HOUSE, STAINLESS IRON,
ALUMINIUM SENSOR |
||
|
Certificate
|
CE, ISO, ROHS, C-Tick, SGS
|
||
|
Country of origin
|
CHINA
|
||
|
Port of Loading
|
Shanghai
|
||
|
H.S Code
|
90160090
|
||
|
Speed
|
2~2.5s
|
||
|
Linearity
|
+/-2d at max capacity
|
||
|
Repeatability
|
2d
|
||
|
Stable Time
|
< 0.5s
|
||
|
Sensitivity
|
1d
|
||
|
Tare
|
0-max
|
||
Functions
* Multiple functions guarantee easy and reliable operation, including auto-counting unit conversion (g, oz, ct...), full-scale
faring, zero-memory etc
* Built-in RS232 automatic calibration guarantee direct connection to external equipment such as computer and printer
* Built-in automatic calibration guarantee easier, faster, stable and accurate
