Product Details:
|
| Customized Support: | OEM, ODM, OBM, Software Reengineering | Display: | LCD(LED )Display |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Material: | ABS + Stainless Steel |
| Power Supply: | 100V-240V | Unit Of Measurement: | G,kg,lb(switchable) |
| High Light: | High Electronic Counting Scale,digital measuring scales 240V,Industrial precision electronic scale |
||

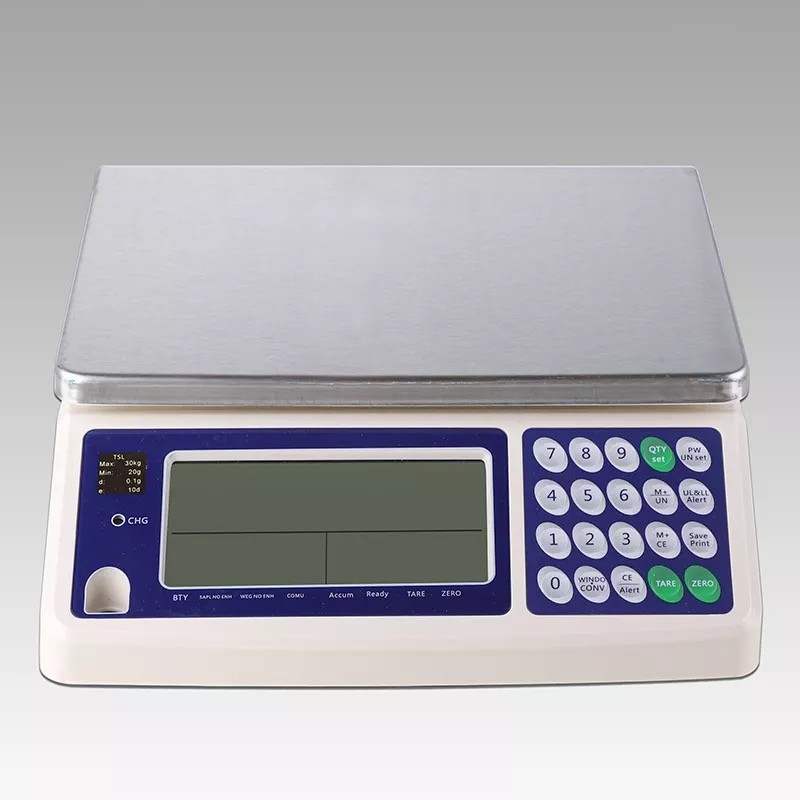

High Electronic Counting Scale Small Industrial Electronic Weighing Scale Precision Electronic Scale
Features:
1. 1/15000 resolution
2. Large bright LCD with green backlight
3. A/D covered by aluminum plate, prevent PCB from static and moisture
4. Overload and transport protection devices
5. Zero/tare/pre-tare/zero tracking /accumulation(99 pieces)/auto unit weight recomputing/part counting/sampling / check quantity functions
6. Auto shut off /auto backlight
7. RS-232 interface (optional)
8. deal for applications including document distribution, shipping and receiving/inventory management/in-process parts counting/prepacking parts or any other use
Specifications
*Display: High-definition LED
*Rated load:3kg-40kg
*Accuracy:0.05g-1g
*Power: AC/DC(220V), rechargeable battery(optional)
*Sensor: Load cell
*Unit: kg/lb/g
*Stabilization time: ≤3s
*Working temperature:0-40°C
*Material: High-strength ABS new materials +Large size 304 stainless steel thick double-layer weighing pan
*Interface: RS232(optional)
*Printer(optional)
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
