Product Details:
|
| Customized Support: | OEM, ODM, OBM, Software Reengineering | Display: | LCD(LED )Display |
|---|---|---|---|
| Special Features: | Counting , Weighing , Tare , Coin Counting, Alarm | Material: | ABS + Stainless Steel |
| Power Supply: | 100V-240V | Unit Of Measurement: | G,kg,lb(switchable) |
| High Light: | Electronic Counting Scale 30kg,30kg Digital Weight Machine,Electronic Counting Scale ISO9001 |
||

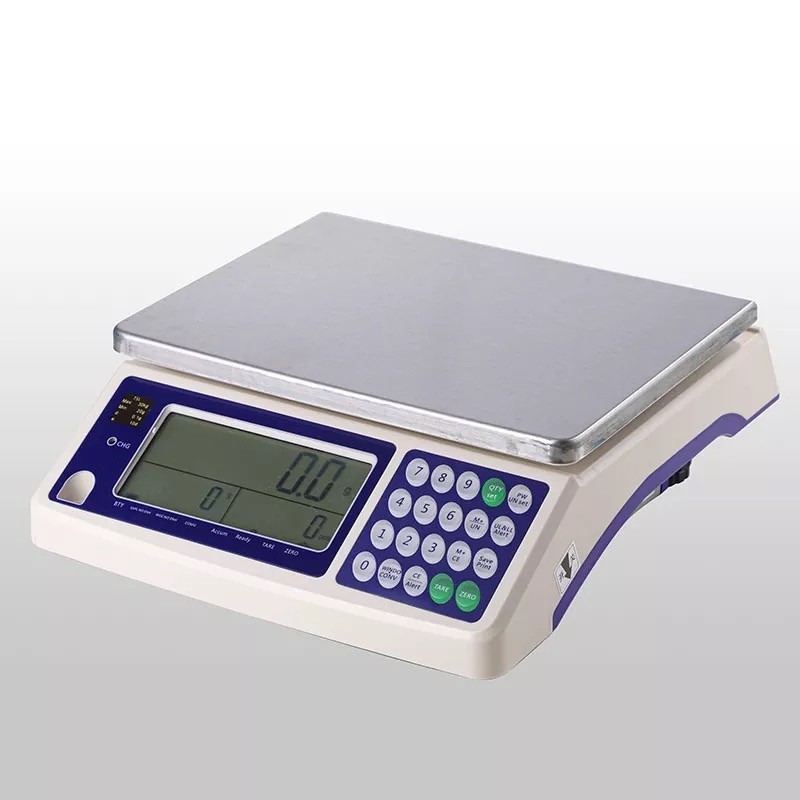

High Precision Digital Weight Machine Price Electronic Counting Scale 30kg
Features:
1. 1/15000 resolution
2. Large bright LCD with green backlight
3. A/D covered by aluminum plate, prevent PCB from static and moisture
4. Overload and transport protection devices
5. Zero/tare/pre-tare/zero tracking /accumulation(99 pieces)/auto unit weight recomputing/part counting/sampling / check quantity functions
6. Auto shut off /auto backlight
7. RS-232 interface (optional)
8. deal for applications including document distribution, shipping and receiving/inventory management/in-process parts counting/prepacking parts or any other use
| Capacity(kg) | 3 | 6 | 15 | 30 |
| Division(g) | 0.2 | 0.5/1g | 1g/5g | 1g/5g/10g |
| Display screen | Weight / Unit price /Total Price (5 / 5 / 6 digits) | |||
| Weighing units | kg/lb,deafult unit is kg | |||
| Weighing pan(mm) | 320x 230mm(about 500g weight,two kinds tray for customer choice) | |||
| Power supply | AC 100~240V / rechargeable battery (4 V/ 4 AH,4V/6AH) | |||
| Body color | Can be customized | |||
| Main board | Big good long life mainboard with circuit protection | |||
| Display board | Good class PCB board | |||
| key pad | Good class PCB board | |||
| Transformer | Copper transformer built inside | |||
| Load cell | 130mm long good load cell | |||
| Body material | New ABS material | |||
| Battery life | 240hrs in continuous use two month without backlight | |||
| Tare range | 100% of full scale capacity | |||
| Dimensions | 330X320X110mm | |||
Function:
1. High and low limited weight alarm, memorize the out-power weight
2. Counting/Tare/Unit conversion/Zero/Print
3. Overload indication
| model | range | Graduation value | Linearity error | Weighing plate size | stable schedule |
| ACS-3000W | 3kg | 0.05g | ±0.15g | 225*230mm | ≤3S |
| ACS-3000W | 3kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-10WD | 10kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-35WD | 35kg | 0.1g | ±0.3g | 225*230mm | ≤3S |
| ACS-6000W | 6kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-20WD | 20kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.2g | ±0.6g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-15WD | 15kg | 0.5g | ±1.5g | 225*230mm | ≤3S |
| ACS-30WD | 30kg | 1g | ±3g | 225*230mm | ≤3S |
| ACS-40WD | 40kg | 1g | ±3g | 225*230mm | ≤3S |
